BT Focusing on cylindrical lithium battery Pack Intelligent Automated Production Line Equipment
5 Years
| Ask Lasest Price | |
| Brand Name : | BT |
| Model Number : | BT-960/960XZ |
| Certification : | ISO9001 |
| Price : | USD 10000-14000 Set |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 50 set month |
| Delivery Time : | 15 work days |

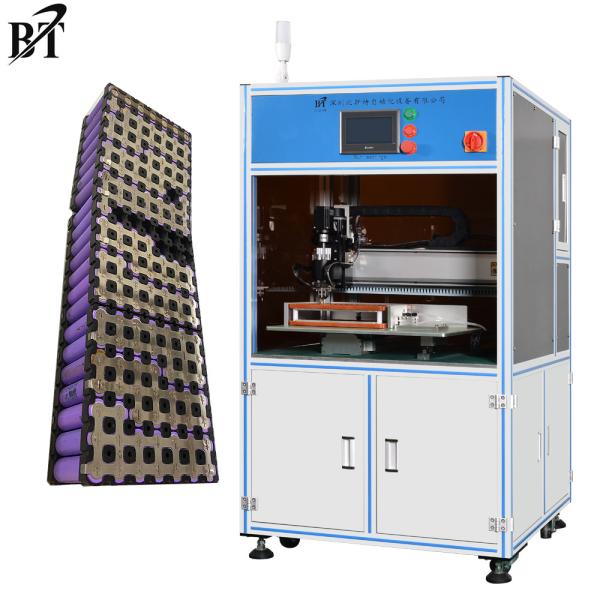

Single Side Automatic Spot Welding Machine For Cylindrical Battery Pack Nickel Strip
Main functions:
Cylindrical single-sided automatic welding of the cylindrical cells
The cylindrical battery pack is automatically welded with BMS PCB
nickel pad
Product characteristics:
♦ The warranty has the warranty is two years
♦ Equipment debugging is easy to learn easy to understand, change the
model speed is fast
♦ The device has three spot welding data input, array input and U
disk input
♦ Point welding specification welding can be set (different current
welding for positive and negative electrodes)
♦ Current is too small or abnormal machine automatic alarm and stop
operation during welding
| BT-960/960XZ | |
| Application | Battery Welding Machine or PCB and battery pack welding |
| Air pressure | 0.4-0.8Mpa,No water, no impurities |
| Y-axis Travel | 200-300mm |
| X-axis Travel | 200-450mm |
| power | AC380 50/60hz 4kw |
| Welding power | BT-8000A DC spot welding power supply,1 set |
| User Interface | Touch screen |
| Spot welding data | CAD data import/dot matrix data import/ manual input |
| Control device | 7-inch touch screen |
| spot welding time | 2-10ms |
| Nickel sheet thickness | 0.1MM---0.3MM |
| Run power | Servo electric |
| Welding current | Max 10000A |
| Battery cell range | 14430/14500/18500/18650/21700/26650/32650/32700 |
| Productivity | About 2000psc/h |
| Welding pin | 1.7mm(can used 1.5 mm, 2mm and 4mm depending on the battery) |
| Dimensions | L900*W900*H1630MM |
| Weight | About 180kg |
FAQ
A: How can i install and operate the machine by myself?
B: Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in thismachine.what you need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.
A: How to order?
B: Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request.We need to know the following information for your order before sending your PI.
A: What's the warranty for the items?
B: We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition.any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damageddue to non human factors within one year, we will provide replacement parts free of charge.
A: What scope does the product apply to?
B: Company 13 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,power batteries, automotive batteries, etc.
|
|
