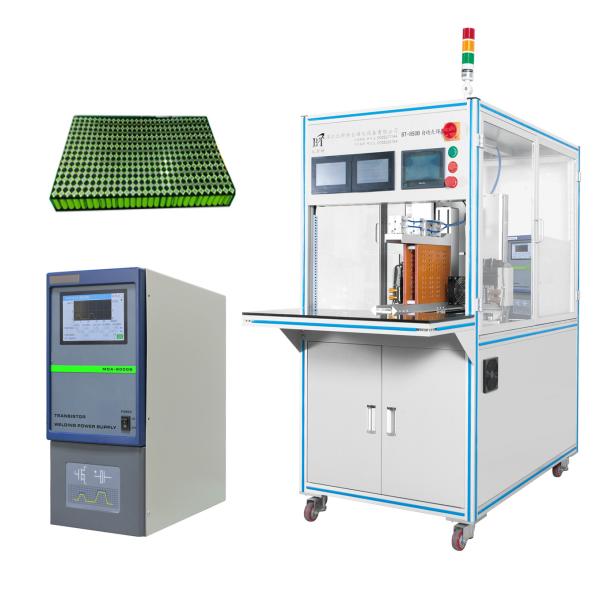

AC 220v Battery Pack Spot Welder For Electric Bicycle Lithium Ion Battery

Intorduction:

BT-850-10000A transistor battery pack automatic spot welding machine, using 10000 A transistor power supply for

spot welding, is a new power supply independently developed by our company, realizing the low power and high current welding battery.

Product characteristics:

1, Spot welding speed is fast,2-10ms spot welding double sides can complete a single spot welding simultaneously,

and the welding point temperature is low.

2. Monitor the welding status in real-time (undercurrent or blast fire)

3. Have a welding completion signal for the wholebattery pack after the spot welding, saving the welding time

4. Point welding specification welding can be set (positive and negative electrodes)

5. If the current is too small or abnormal during spot welding, the machine will automatically alarm and stop the machine

SPECIFICATIONS FOR BT-850-10000A Transistor
Application	Battery pack welding
power	AC220 50/60hz 4KW
Max Motor Speed	1000mm/s
Y-axis Travel	200-400mm
X-axis Travel	200-600mm
Air pressure	0.4-0.8Mpa,No water, no impurities
Welding power	BT-8000B Transistor spot welding power supply,2 set
User Interface	Touch screen
Control device	7.5-inch touch screen
spot welding time	2-10ms
Nickel sheet thickness	0.1-0.3mm need slotted ;0.21-0.4mm Bump welding nickel sheet
Run power	Servo electric
Welding current	Max 10000A
Battery cell range	14430/14500/18500/18650/21700/26650/32650/32700
Productivity	4600-5000psc/h
Welding pin	1.7mm(can used 1.5 mm, 2mm and 4mm depending on the battery)
Dimensions	L1630*W850*H1630MM
Weight	About 220kg

Founded in 2005, Shenzhen Best Automation Equipment Co.,Ltd. is a high-tech enterprise integrating the R & D, production and sales of automation equipment for cylindrical battery pack. The company has professional R&D team, advanced automatic processing machinery for spare parts, and professional management and technical personnel, strictly in accordance with international standards management enterprises, strict implementation of ISO9001 international quality system standards, products exported to Southeast Asia, Europe and the United States and other countries and regions.

Since its establishment in 2005, the company has been committed to the R & D, production and sales of automatic equipment and production line of cylindrical battery pack. It is mainly suitable for digital battery, energy storage battery, tool battery, power battery and automobile battery. It can be used by single machine and automatic on-line.

BT always adheres to the business philosophy of quality first and service first, do a good job of product quality, serve new and old customers, and achieve mutual benefit and win-win results.

BT cylindrical lithium battery automatic pack equipment has been recognized by the industry for 15 years, with stable quality and continuous introduction of high-quality and high-efficiency pack intelligent production equipment.

With global after-sales service, two-year warranty, free technical training, professional and technical personnel on-site to guide installation and use, and 24-hour fast response tracking after sales
