BT Focusing on cylindrical lithium battery Pack Intelligent Automated Production Line Equipment
5 Years
| Ask Lasest Price | |
| Brand Name : | BT |
| Model Number : | BT-850B-8000A |
| Certification : | ISO9001 |
| Price : | USD 16000-20000 Set |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 50 set month |
| Delivery Time : | 15 work days |
8KW 50/60HZ AC Spot Welding Machine For Electric Balance Scooter Battery
Introduction:

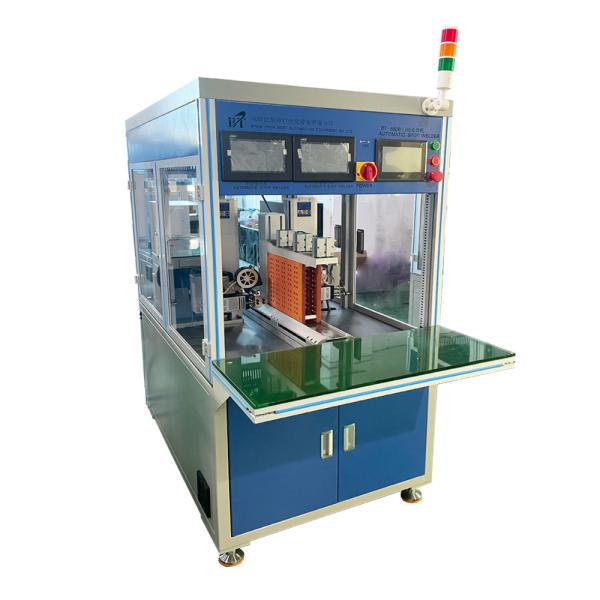

BT-850B-8000A double-sided automatic spot welding machine, the running mechanism adopts servo motor with
line-type module, positioning precise spot welding each battery group, is a high-efficiency and high-quality lithium
battery PACK production equipment developed by our company.
Product characteristics:
1. Automatic welding is realized, and the solder joints are of high quality and uniformity.
2. Real-time monitoring of welding current. If there is false welding or fire explosion, it will report to the police immediately.
3. Welding can be carried out according to the different solder joints specified by the customer
(different currents can be set for the positive and negative electrodes).
4. The parameters of spot welding coordinates can be imported by U disk.
5. The operating mechanism adopts a servo motor and a linear module for precise positioning.
6. The production quantity is automatically collected and the current production efficiency is displayed
| SPECIFICATIONS FOR BT-850-8000A | |
| Application | Battery Welding Machine |
| Max Motor Speed | 1000mm/s |
| Y-axis Travel | 200-400mm |
| X-axis Travel | 200-600mm |
| Air pressure | 0.4-0.8Mpa |
| Welding power | BT-8000A DC spot welding power supply,2 set |
| User Interface | Touch screen |
| Control device | 7.5-inch touch screen |
| spot welding time | 2-10ms |
| Nickel sheet thickness | 0.1MM---0.3MM |
| power | AC380 50/60hz 8kw |
| Welding current | Max 8000A |
| Battery cell range | 14430/14500/18500/18650/21700/26650/32650/32700 |
| Productivity | 4000-5000psc/h |
| Welding pin | 1.7mm(can used 1.5 mm, 2mm and 4mm depending on the battery) |
| Dimensions | L1630*W850*H1630MM |
| Weight | About 220kg |
FAQ
A:How long is the guarantee period of the machine?
B:Our machines are guaranteed for two years, during which the company will repair them free of charge if there is any problem.
A:Do you support after sales service?
B:Yes, after purchase we will have professionals to install and train, and the warranty is two years. Exported to Europe
and the United States, Southeast Asian countries, there is a site in India
A:What scope does the product apply to?
B:Company 12 years committed to column Battery Pack Automation Production Equipment, and column Battery
Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,
power batteries, automotive batteries, etc.
|
|
