BT Focusing on cylindrical lithium battery Pack Intelligent Automated Production Line Equipment
5 Years
| Ask Lasest Price | |
| Brand Name : | BT |
| Model Number : | BT-100V10C20F |
| Certification : | ISO9001 |
| Price : | USD 5600-7000 Set |
| Payment Terms : | L/C, T/T, Western Union, MoneyGram |
| Supply Ability : | 50 set month |
| Delivery Time : | 15 work days |

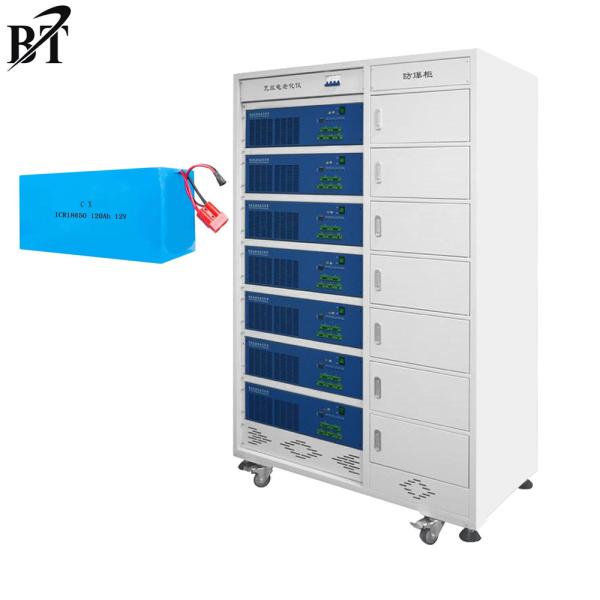

Lithium Rechargeable Battery Pack Discharging And Charging Tester
Introduction:
The aging cabinet is mainly used for testing the charging and discharging cycle of finished lithium battery pack.
Testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc.
Product characteristics:
♦ The instrument number is displayed through the LED lamp, and the
corresponding instrument number location can be checked at any time
♦ The instrument provides P + and P-interfaces, and CH + and CH-, can
test special finished batteries
♦ The battery is mainly in the test range, you can charge and
discharge the battery
♦ The voltage can be set at 10-100V, charging current of 0-10A,
discharge current of 0-20A
♦ The computer is not configured locally, so the customer needs to
buy it itself
♦ With constant current and constant pressure charging function
| Input Power | AC 380V 7kw 50/60Hz | |
| Voltage | Measuring range | 0~100V |
| Precision | ±(0.2% of reading + 0.2% of range) | |
| Electric Current | Charging range | 0~10A |
| Charging accuracy | ±(0.2% of reading + 0.2% of range) | |
| Discharge range | 0~20A | |
| Precision | ±(0.2% of reading + 0.2% of range) | |
| Charging | Constant voltage cut-off current | (minimum)10mA |
| Capacity | Precision | ±1‰ |
| Power | Discharge power | ≤1400W |
| Time | Inspection time | <2S(Receive real-time & LT; 2s) |
| Timing range | 0 ~ 999 hours / Step | |
| Data recording interval | ≥5S | |
| Median version | 1.1 series | |
| Charging | Charging mode | Constant current and constant voltage charging |
| Cut-off condition | Voltage, current, relative time, overcharge protection | |
| Discharge | Discharge mode | Constant current discharge |
| Cut-off condition | Voltage, relative time, over-discharge protection | |
| Circulates | Cyclic range | 1~999 |
| Single cycle number of steps | 100 | |
| Voltage and current detection sampling | Four wire connection | |
| Noise | <50dB | |
| Database | Using My SQL database to manage test data | |
| Communication Mode of upper computer | Based on TCP / IP Protocol, serial port | |
| Data output mode | EXCEL,TXT,Chart | |
| Communication interface | Mesh opening | |
| Number of channels per cabinet | 7 | |
| Case size | W*D*H:450MM*300MM*170MM | |
| Cabinet size | W*D*H:900MM*600MM*1900MM | |
FAQ
A:How can i install and operate the machine by myself?
B:Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the electrical power, then machine can be working. because the English software were installed in thismachine.what you need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.
A:How to order?
B:Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request. We need to know the following information for your order before sending your PI.
A:What's the warranty for the items?
B:We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition. any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damaged due to non human factors within one year, we will provide replacement parts free of charge.
A:What scope does the product apply to?
B:Company 13 years committed to column Battery Pack Automation Production Equipment, and column Battery Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,power batteries, automotive batteries, etc.
|
|
