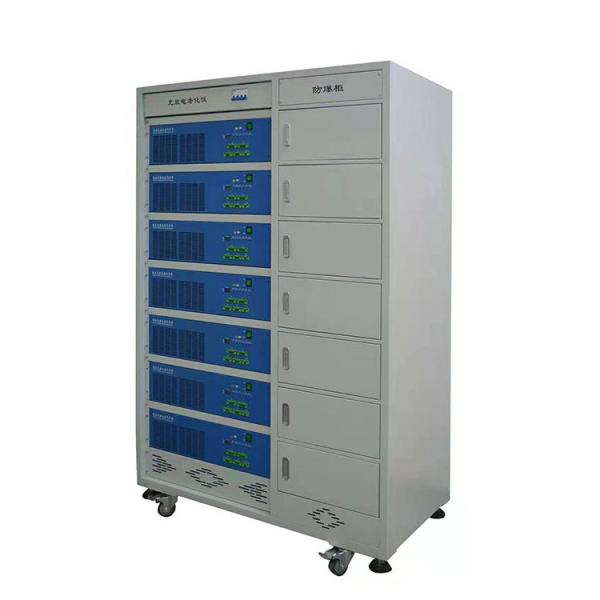

10A Charging 20A Discharge 100V Battery Aging Cabinet Testing Machine

Introduction:

The equipment has charging, discharging, shelving, and cycling four testing steps. The battery can be tested

according to the set process by editing the corresponding steps.

Testing items include: battery charging protection voltage, discharging protection voltage, capacity, etc.

Product characteristics:

♦ The voltage can be set at 10-100V, charging current of 0-10A, discharge current of 0-20A
♦ The computer is not configured locally, so the customer needs to buy it itself
♦ With constant current and constant pressure charging function
♦ The equipment has a constant current discharge function
♦ Fully meet the requirements of the battery pack charge and discharge outlets and charge and discharge outlets
♦ Colleagues can be aging the positive plate charging protection negative plate discharge protection
♦ By charging and discharge cycle of the battery, you can detect whether the charging protection and discharge protection

of the battery are normal
♦ Charge and discharge cycle on the battery and record the charging capacity and discharge capacity
♦ The equipment has anticonnection protection function
♦ The equipment has the protection of voltage upper and lower limit setting
♦ The equipment has a safe discharge current protection function
♦ PC computers can be connected through the serial port to reduce the complexity of instrument use
♦ Network connection mode can be adopted, and the PC computer terminal can control within 254

instruments by only providing one network port
♦ The software system adopts a classic and mature C/S mode
♦ There are two ways: serial port and network
♦ The serial port can realize the accurate communication of several instruments for short distances
♦ The network can achieve long-distance multiple instrument preparation communication
♦ Based on the Windows operation interface, the MYSQ database is used to store the test data
♦ The equipment can view the charge and discharge aging curve, and colleagues can export the curve diagram
♦ In network mode, automatic online, no manual online is required
♦ The tested data provides the measurement data check function
♦ The instrument number is displayed through the LED lamp, and the corresponding instrument number location can be checked at any time
♦ The instrument provides P + and P-interfaces, and CH + and CH-, can test special finished batteries
♦ The battery is mainly in the test range, you can charge and discharge the battery

FAQ

A :How can i install and operate the machine by myself?

B: Our system R&D based on intearated development viewwhen you get the machine, just need to connect it with the

electrical power, then machine can be working. because the English software were installed in thismachine.what you

need to do is only learning the software usage,and the complete English user manual will be coning to you with the machine.

A: How to order?

B: Please send us your purchase order by email or call us salesor we can make the proforma invoice under your request.

We need to know the following information for your order before sending your PI.

A: What's the warranty for the items?

B: We are very confident in our productsand we pack them very well, so usually you will receive your order in good condition.

any quality issue,we will deal with it immediately.Warranty for equipment is a year (24months) if the equipment parts are damaged

due to non human factors within one year, we will provide replacement parts free of charge.

A: What scope does the product apply to?

B: Company 13 years committed to column Battery Pack Automation Production Equipment, and column Battery

Pack Automation Production Line. Products are mainly used in digital batteries, energy storage batteries, tool batteries,

power batteries, automotive batteries, etc.

Founded in 2005, Shenzhen Best Automation Equipment Co.,Ltd. is a high-tech enterprise integrating the R & D, production and sales of automation equipment for cylindrical battery pack. The company has professional R&D team, advanced automatic processing machinery for spare parts, and professional management and technical personnel, strictly in accordance with international standards management enterprises, strict implementation of ISO9001 international quality system standards, products exported to Southeast Asia, Europe and the United States and other countries and regions.

Since its establishment in 2005, the company has been committed to the R & D, production and sales of automatic equipment and production line of cylindrical battery pack. It is mainly suitable for digital battery, energy storage battery, tool battery, power battery and automobile battery. It can be used by single machine and automatic on-line.

BT always adheres to the business philosophy of quality first and service first, do a good job of product quality, serve new and old customers, and achieve mutual benefit and win-win results.

BT cylindrical lithium battery automatic pack equipment has been recognized by the industry for 15 years, with stable quality and continuous introduction of high-quality and high-efficiency pack intelligent production equipment.

With global after-sales service, two-year warranty, free technical training, professional and technical personnel on-site to guide installation and use, and 24-hour fast response tracking after sales
